[Group Buy] Anorexus VOID 65% Mechanical Keyboard Kit

GB Date: Sep 9th, 20:00 EST to Sep 30th, 23:59 EST

‼️ Before purchase, you must read and accept following Terms and Conditions of Anorexus Void65 Groupbuy‼️

1. This is a "Groupbuy" sale. Upon purchase, you acknowledge that estimated shipping time is Q1 2025,  and delay may occur due to but limited to conditions like: shipping delay introduced by any unforeseeable production issue.
2. After purchase, you will be charged immediately.
3. Due to the nature of "Groupbuy" sale that we will start to arrange production immediately after sale conclude, we generally do not allow cancellation. If you do need to cancel before GB ends, we review requests on a case-by-case basis at our discretion. If cancellation is accepted, a 3% payment processing fee will be withheld on refund.
4. We reserve the right to cancel orders which we deem violating our sale T&C.
5. This is a keyboard kit and does not come with switches and keycaps.

Intro Page by Designer

Extra Add-ons

VØID

65% Top Mount + O-Ring Keyboard

Intro

Hello everyone! Allow me to introduce Void, a 65% layout mechanical keyboard kit with a dual mounting system, top mount and o-ring mount.
Void provides an adjustable typing experience that allows users to customize the stiffness and sound characteristics. Users can choose between a top mount for a stiffer typing experience and sound, or an o-ring mount for a softer typing experience and isolated sound.

Design

Vøid offers an aggressive look while still maintaining a clean design.

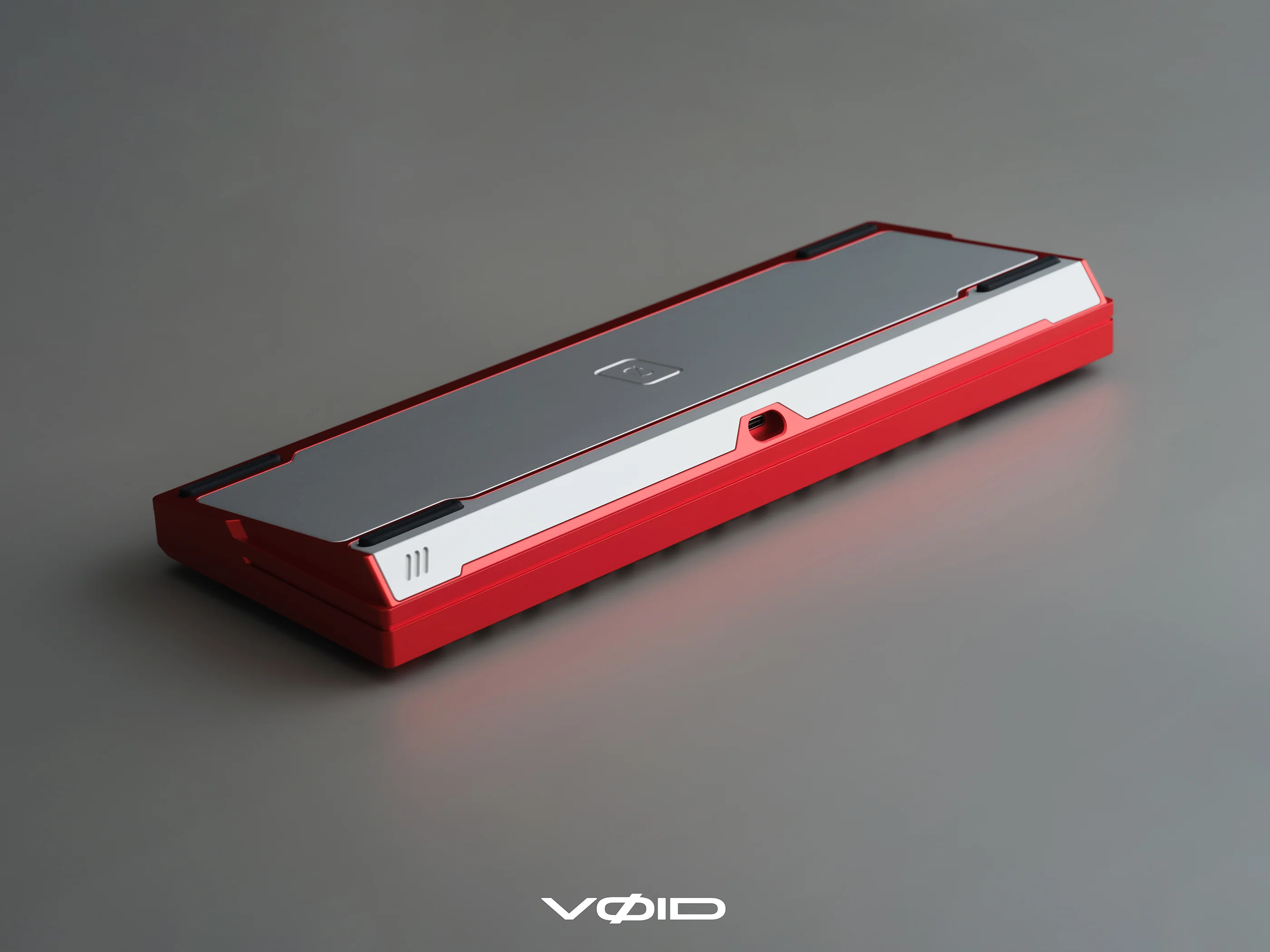

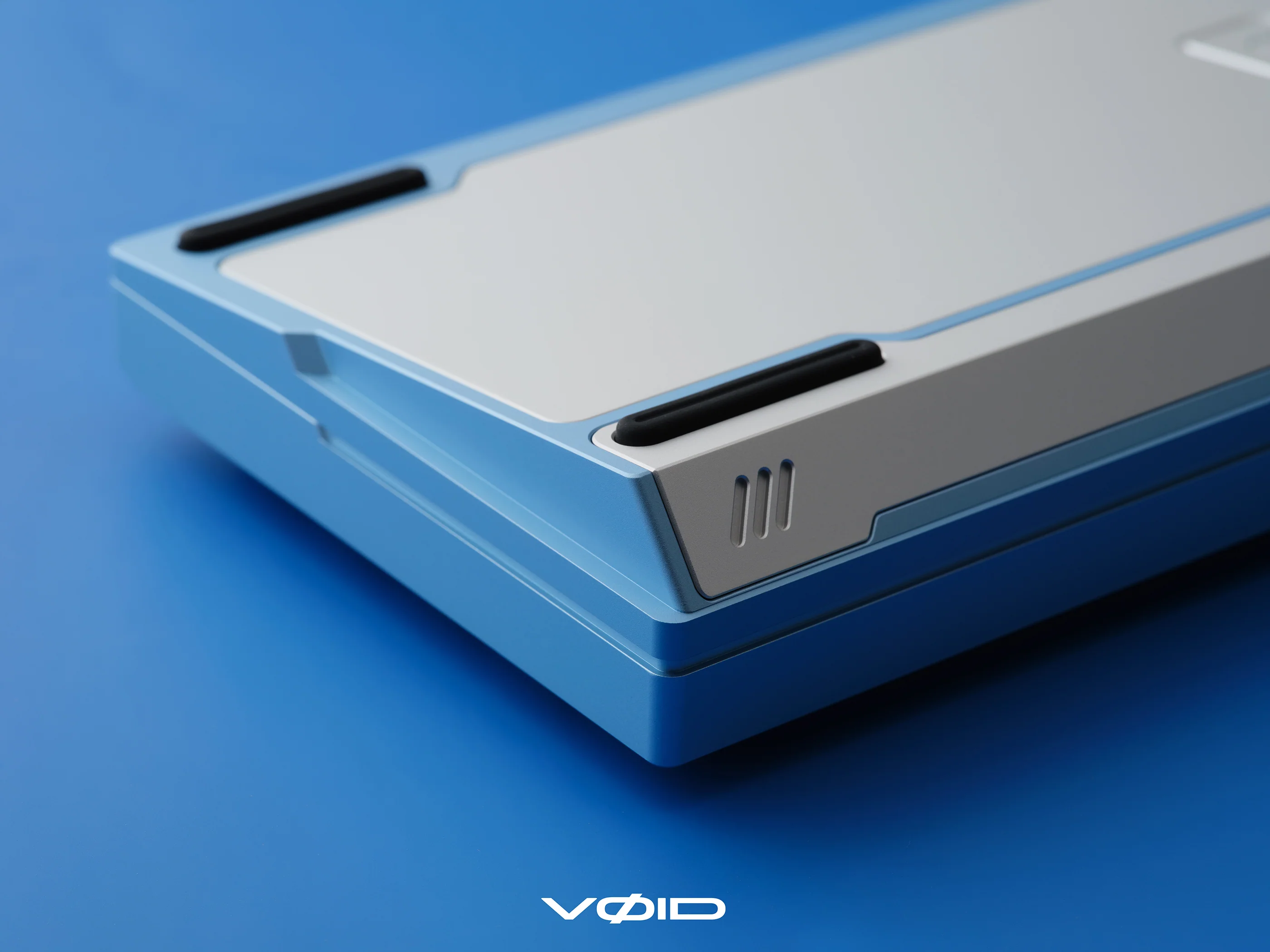

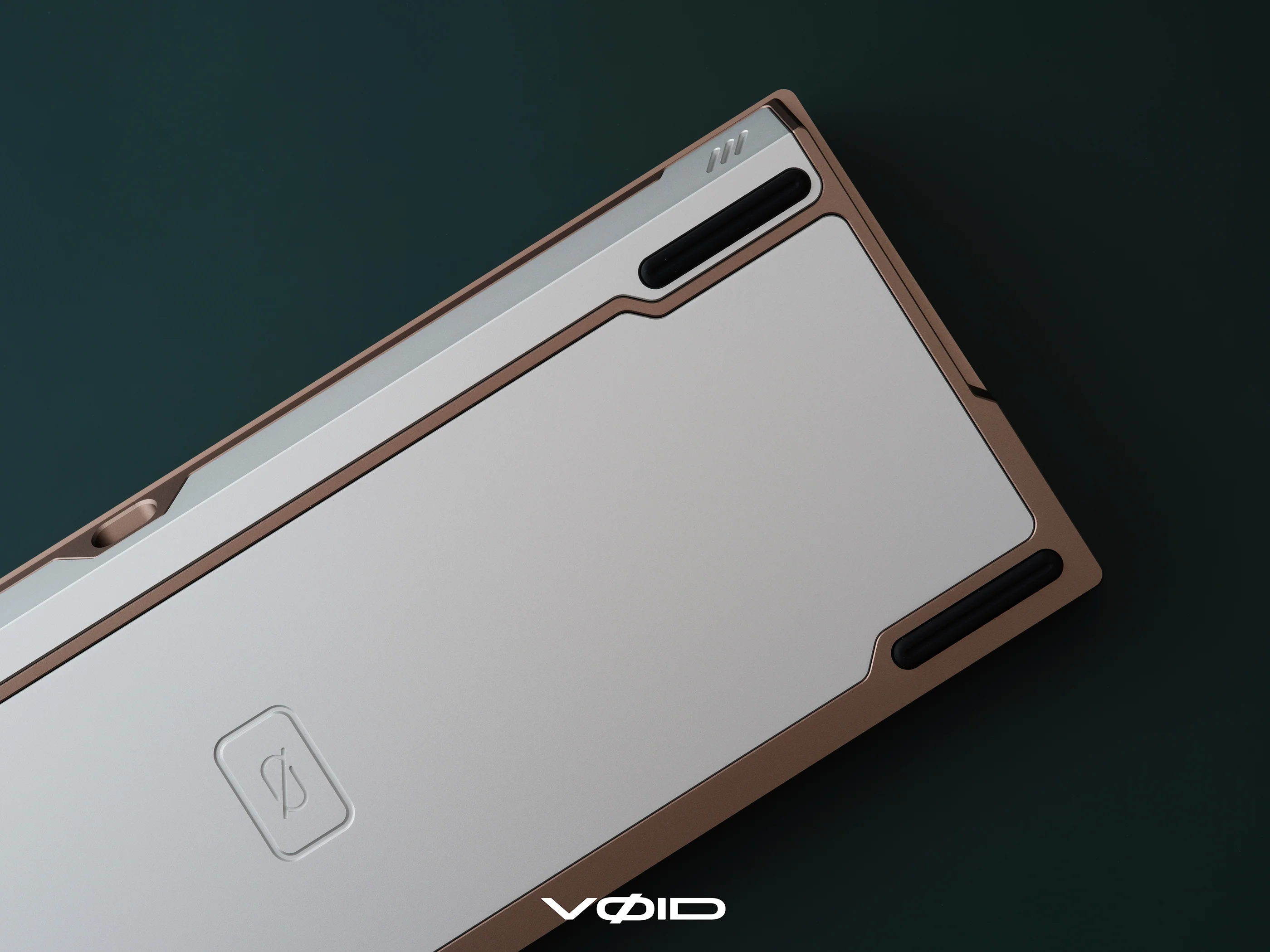

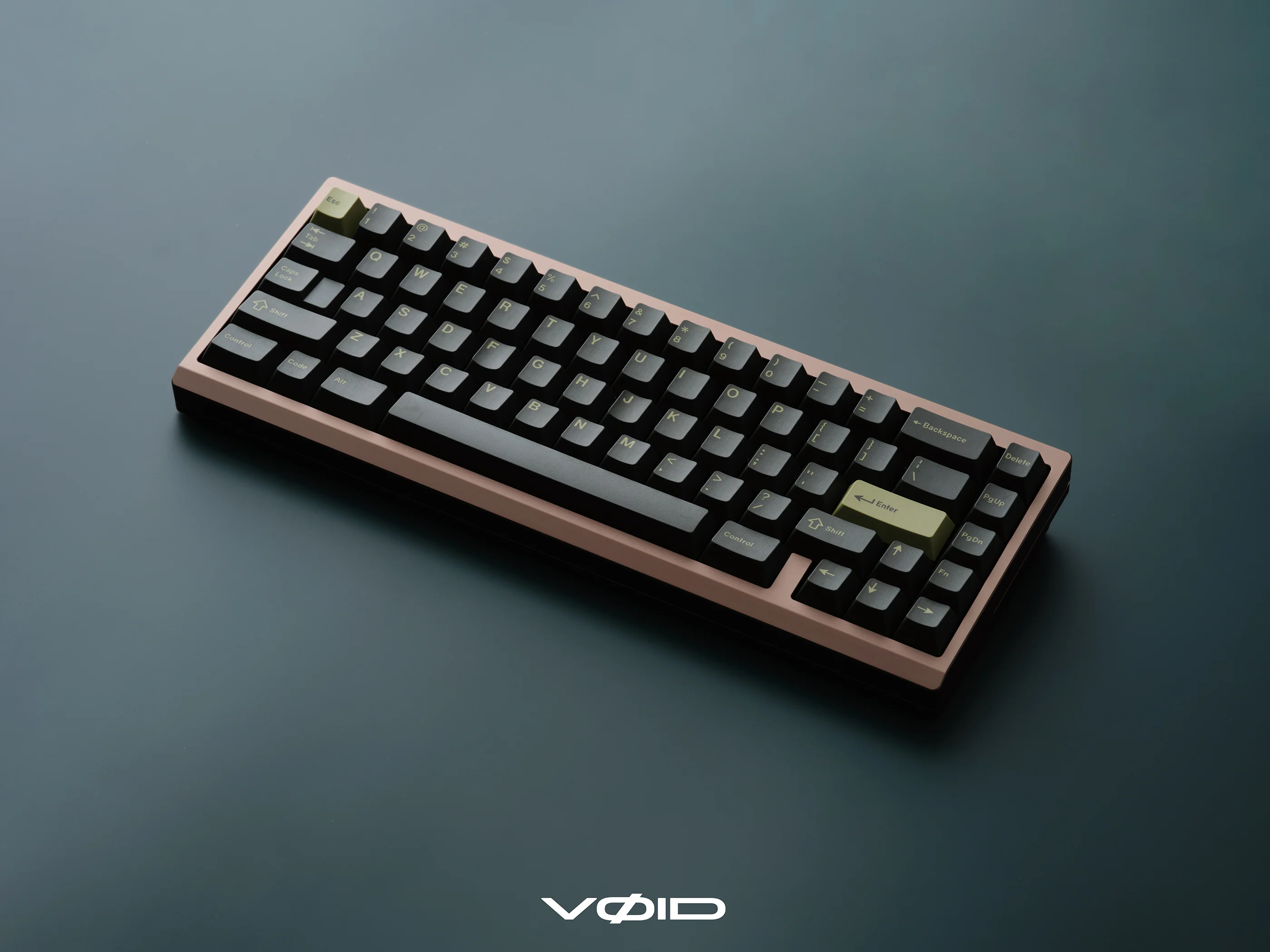

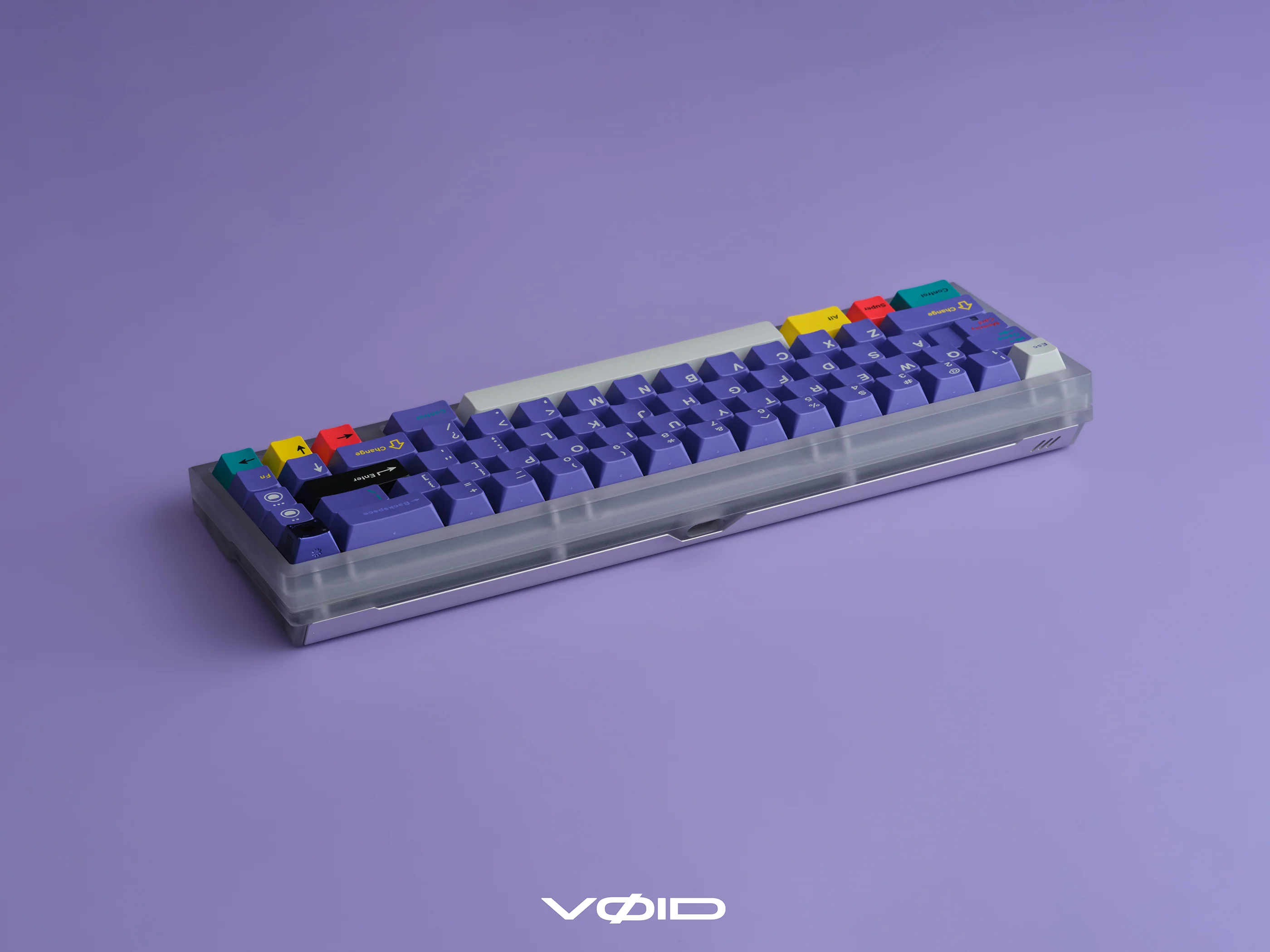

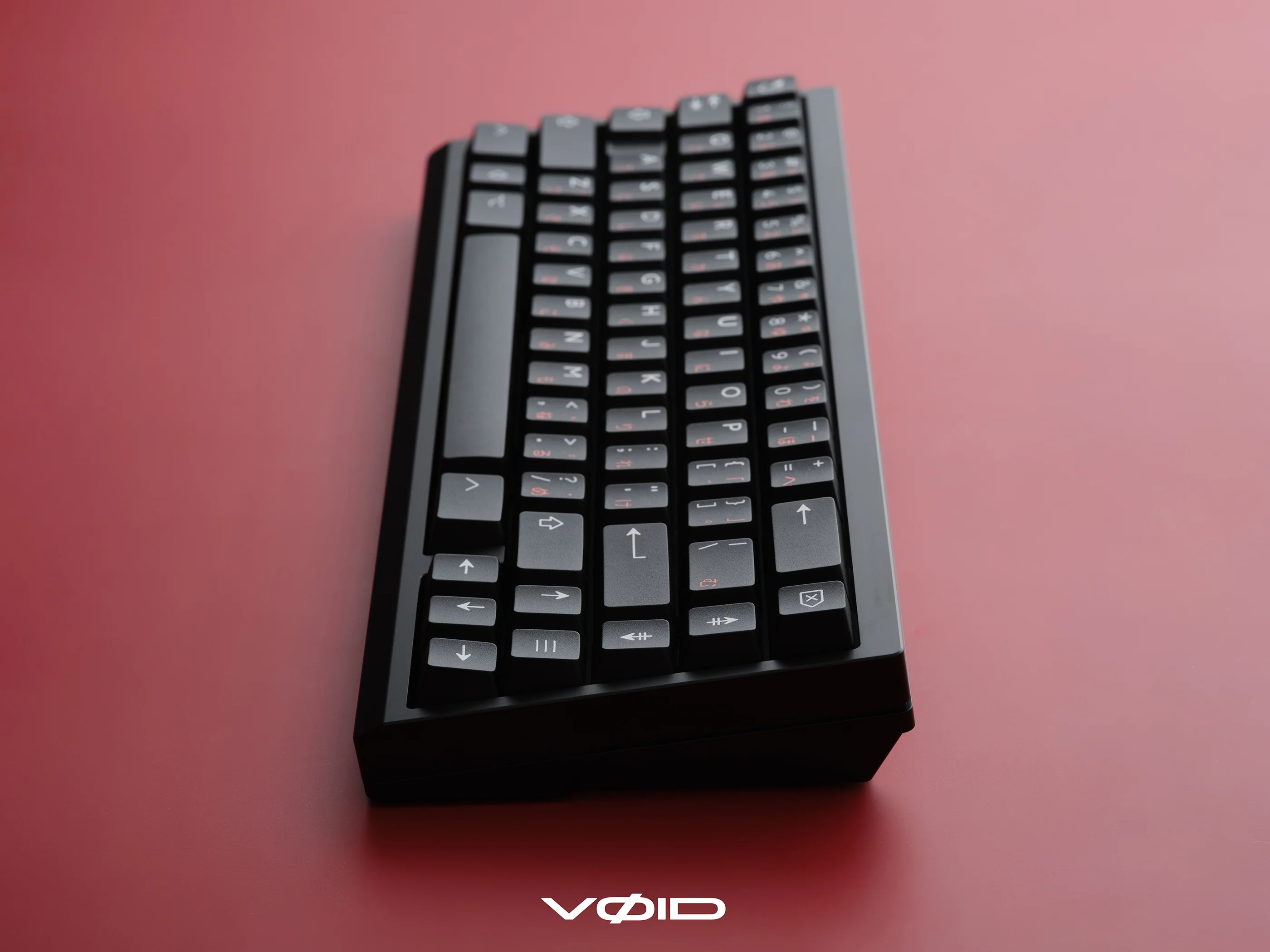

Render Images


Specifications

Layout: 65%
- Mounting system: Top mount and gummy o-ring mount
- Typing Angle: 7.5°
- Effective keyboard height: 23.35mm
- Plate: 1.5mm Aluminium, Polycarbonate, POM, Carbon Fiber, FR4 (1.6mm)
- PCB: In-house design PCB void65 1.6mm thickness solder or hot-swap - configurable with QMK/VIA
- Weight before assembly: ± 1019g aluminum kit, 1639g copper kit
- Weight after assembly: ± 1355g aluminum kit, 1962g copper kit

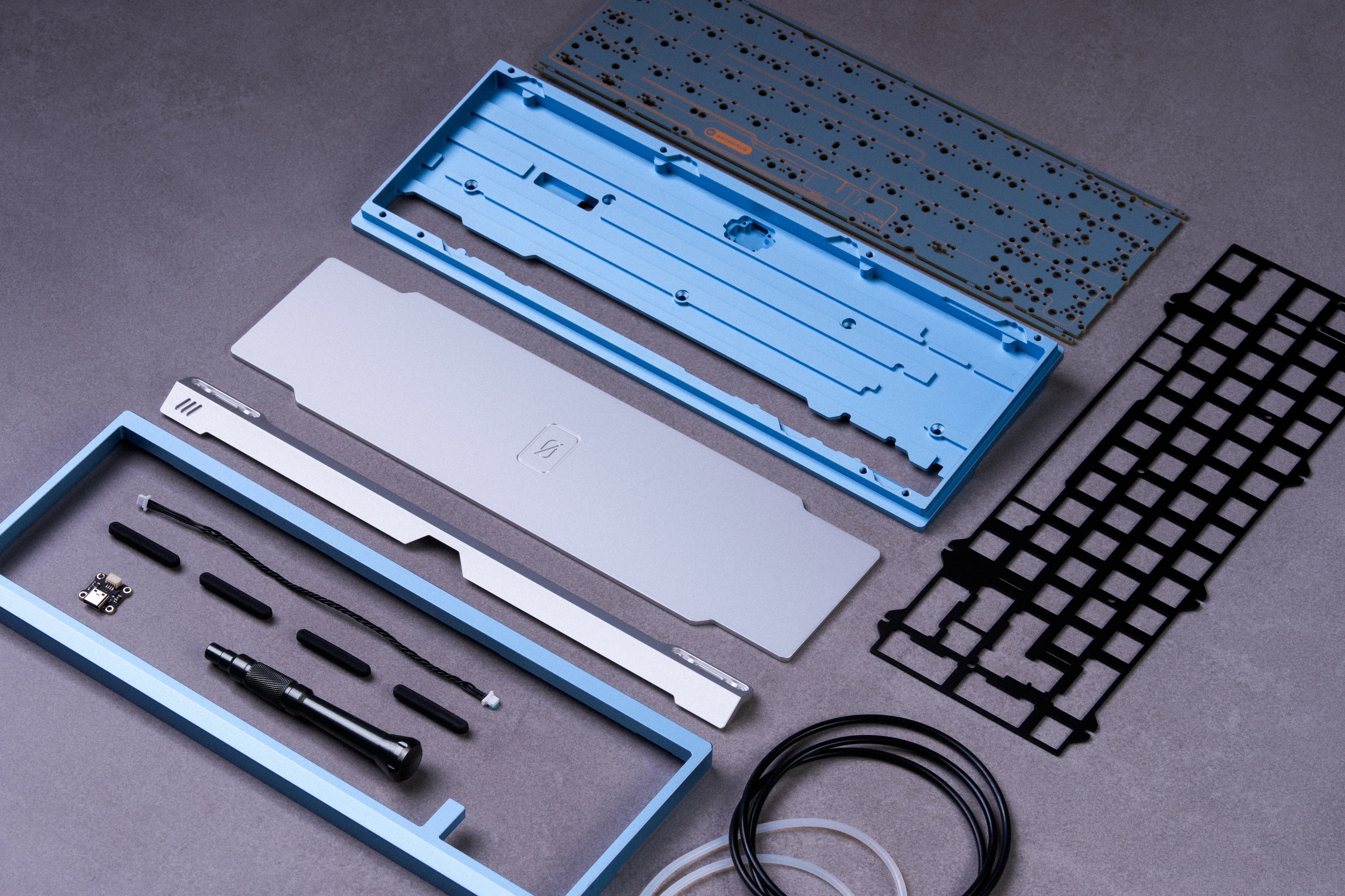

Parts included with the kit:
- Keyboard case: (Top case, Bottom case, Rear bumper, Bottom plate)
- Plate (Aluminium, Polycarbonate, POM, Carbon Fiber, FR4)
- 1.6mm Hotswap/Solder PCB; layout information will be shared later
- Daughterboard JST Cable
- 1x O-ring (50a) 1x O-ring (30a)
- 4x Custom-designed rubber feet
- Hand-carry keyboard bag
- Other accessories

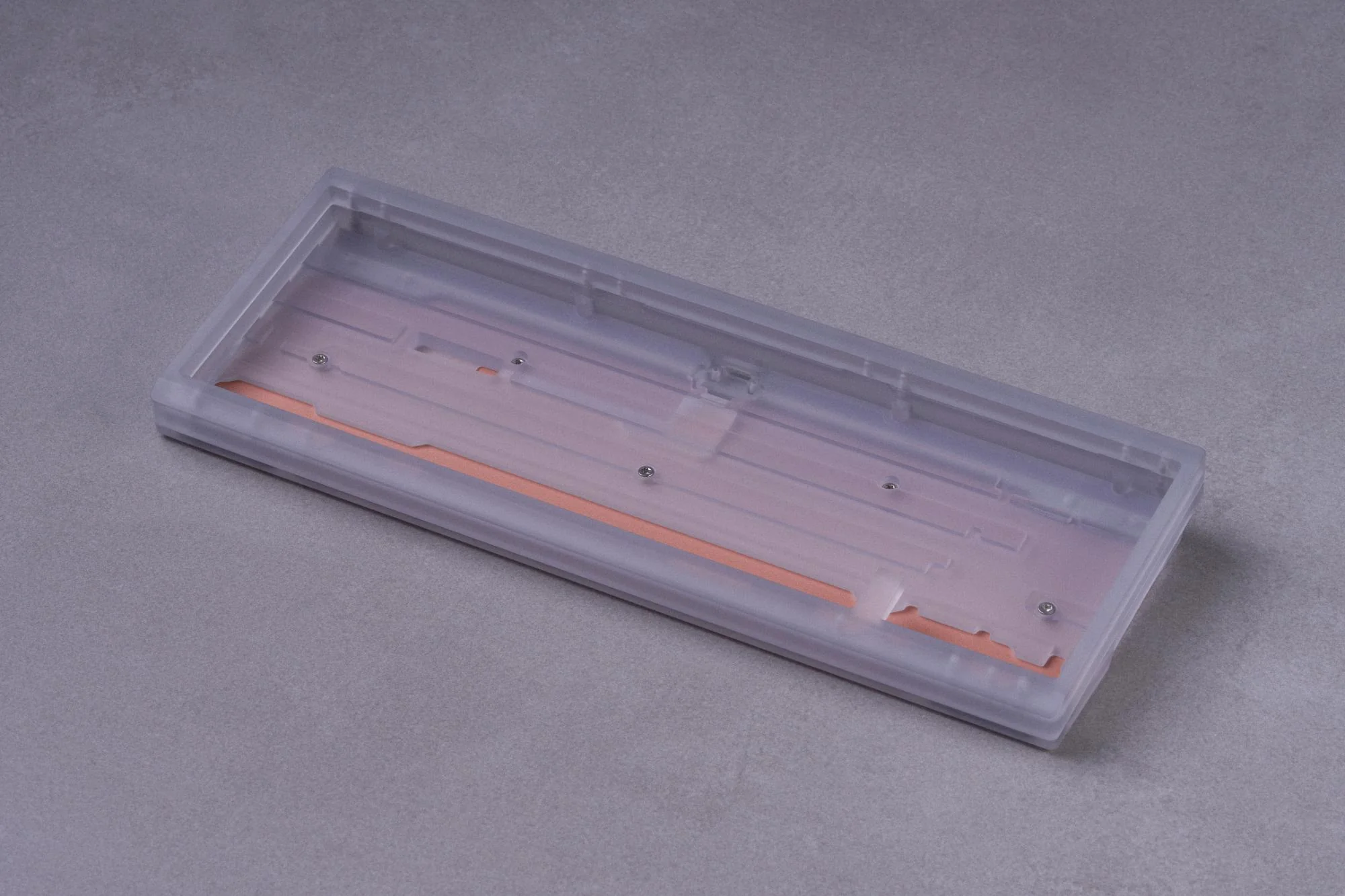

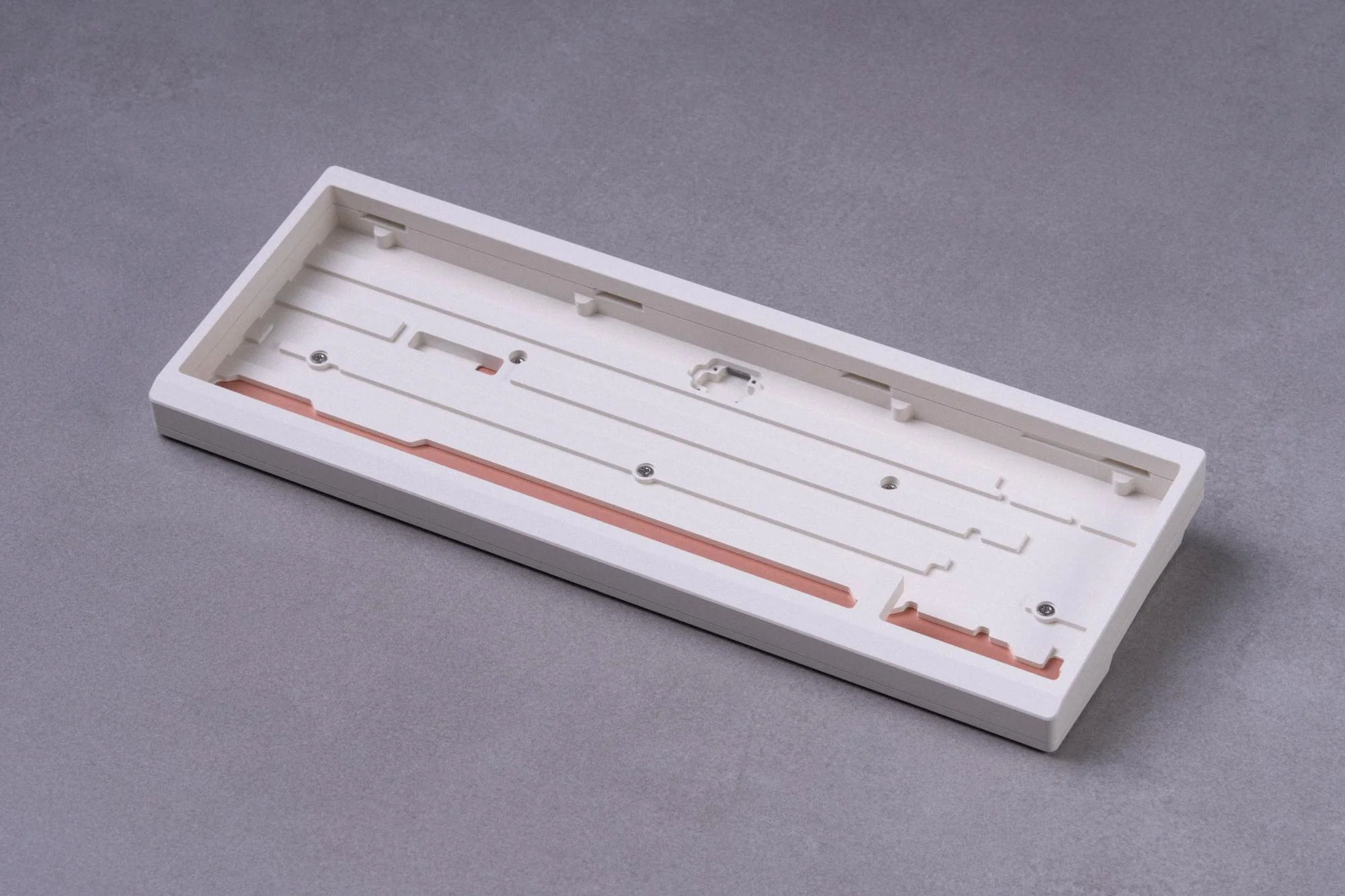

Constructions

Vøid consist 4 major parts:
1. Top case with aluminum 6063

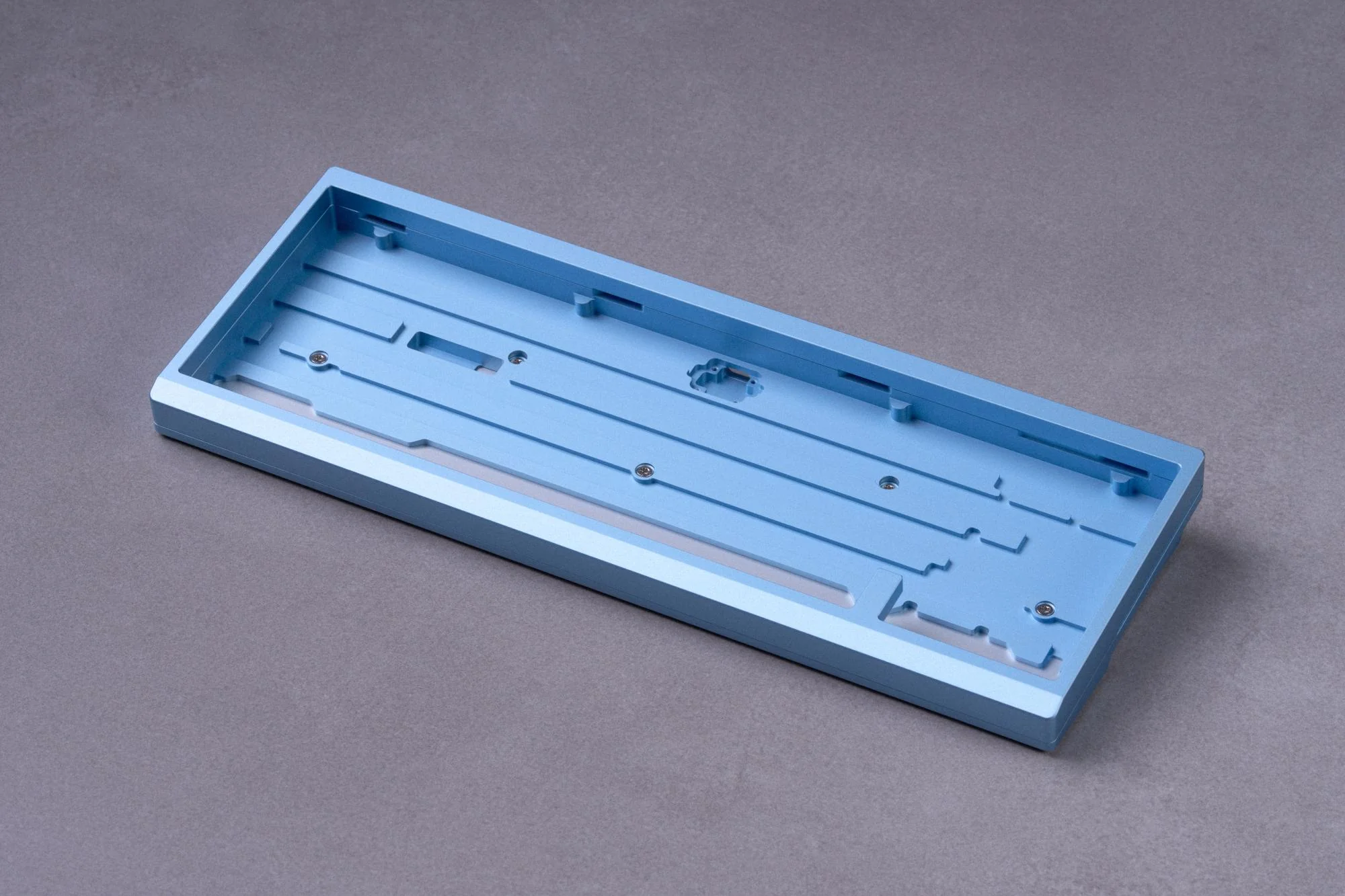

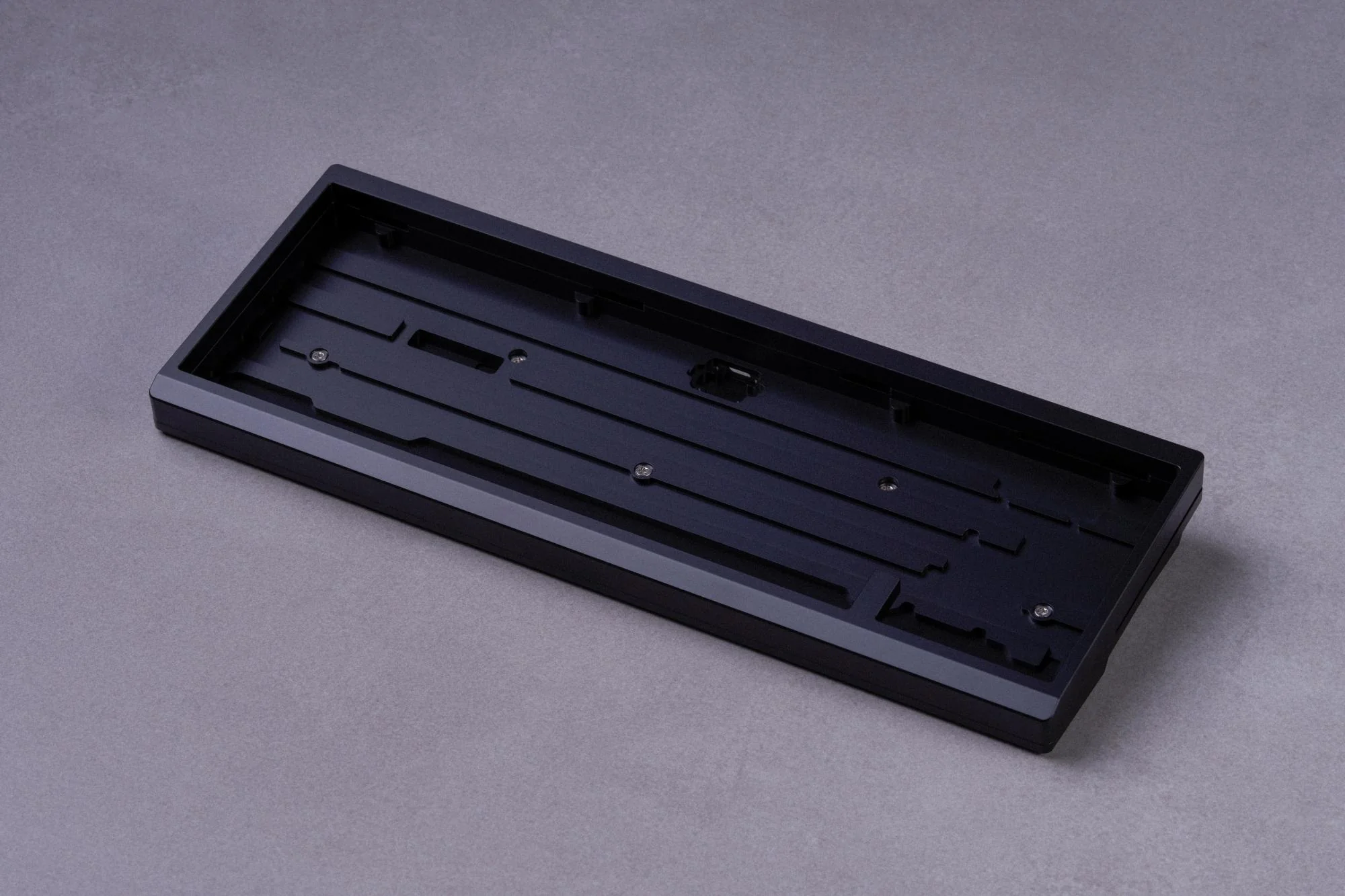

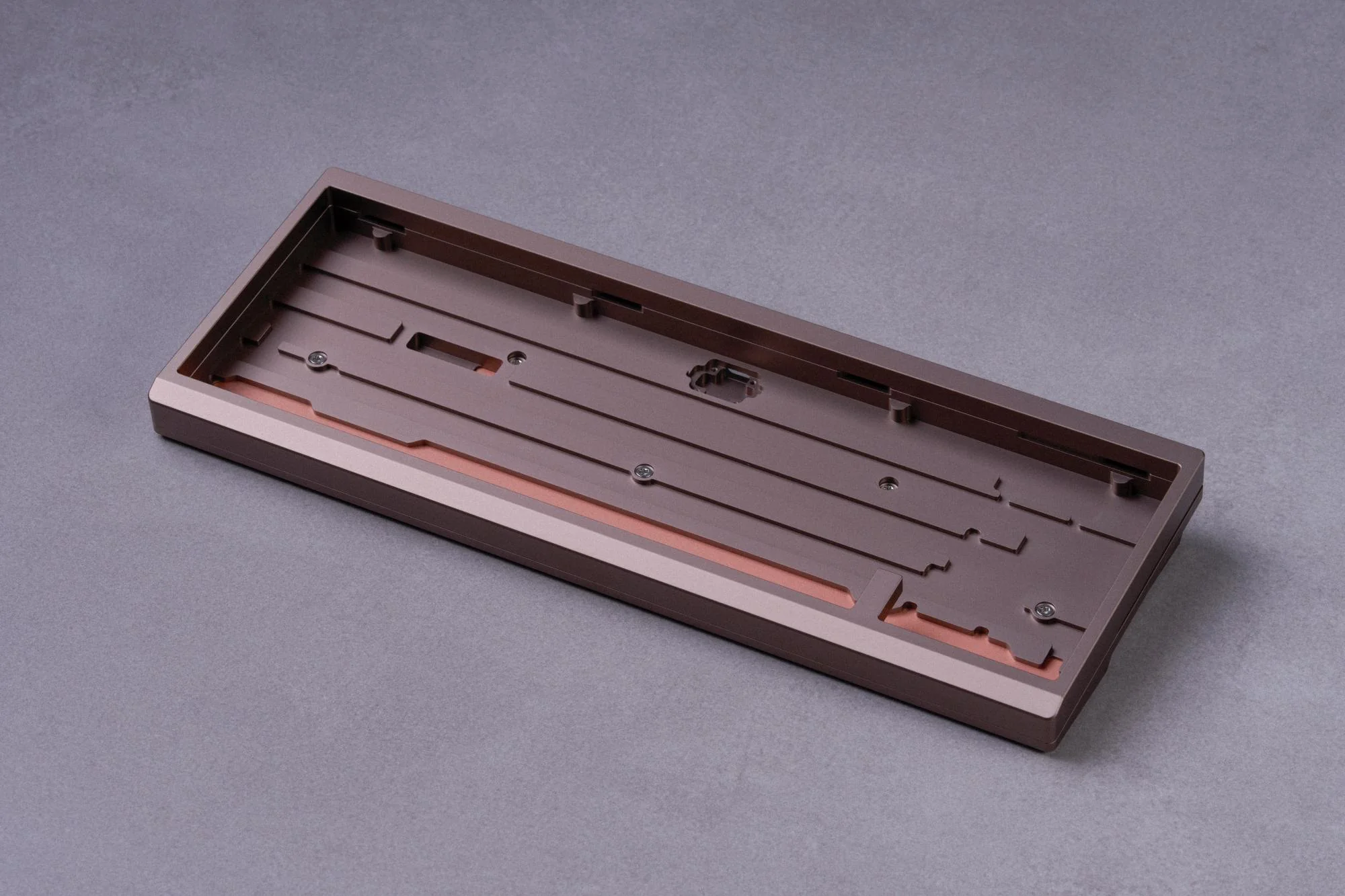

2. Bottom case with aluminum 6063

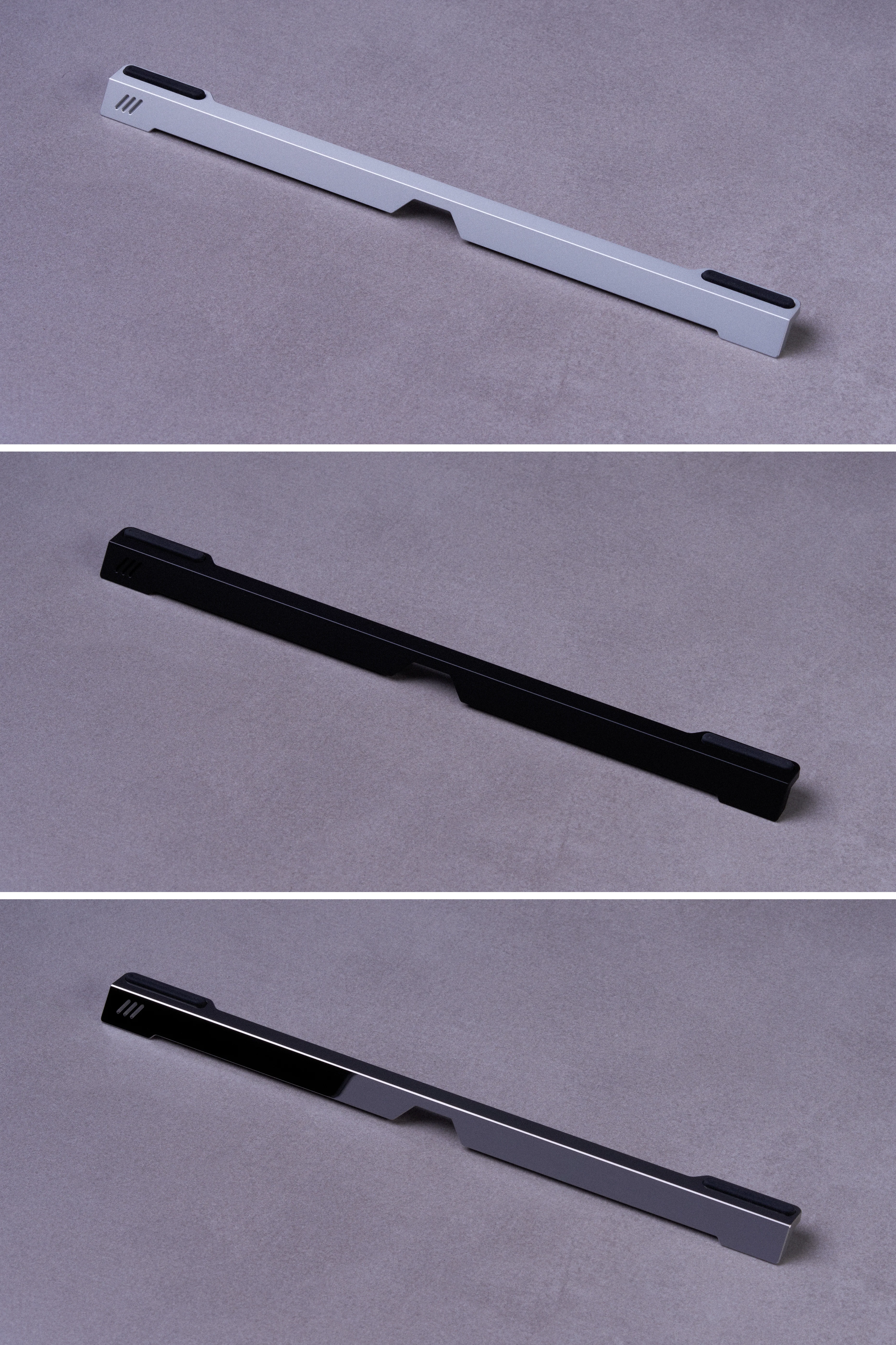

3. Rear bumper with aluminum 6063 or Stainless steel

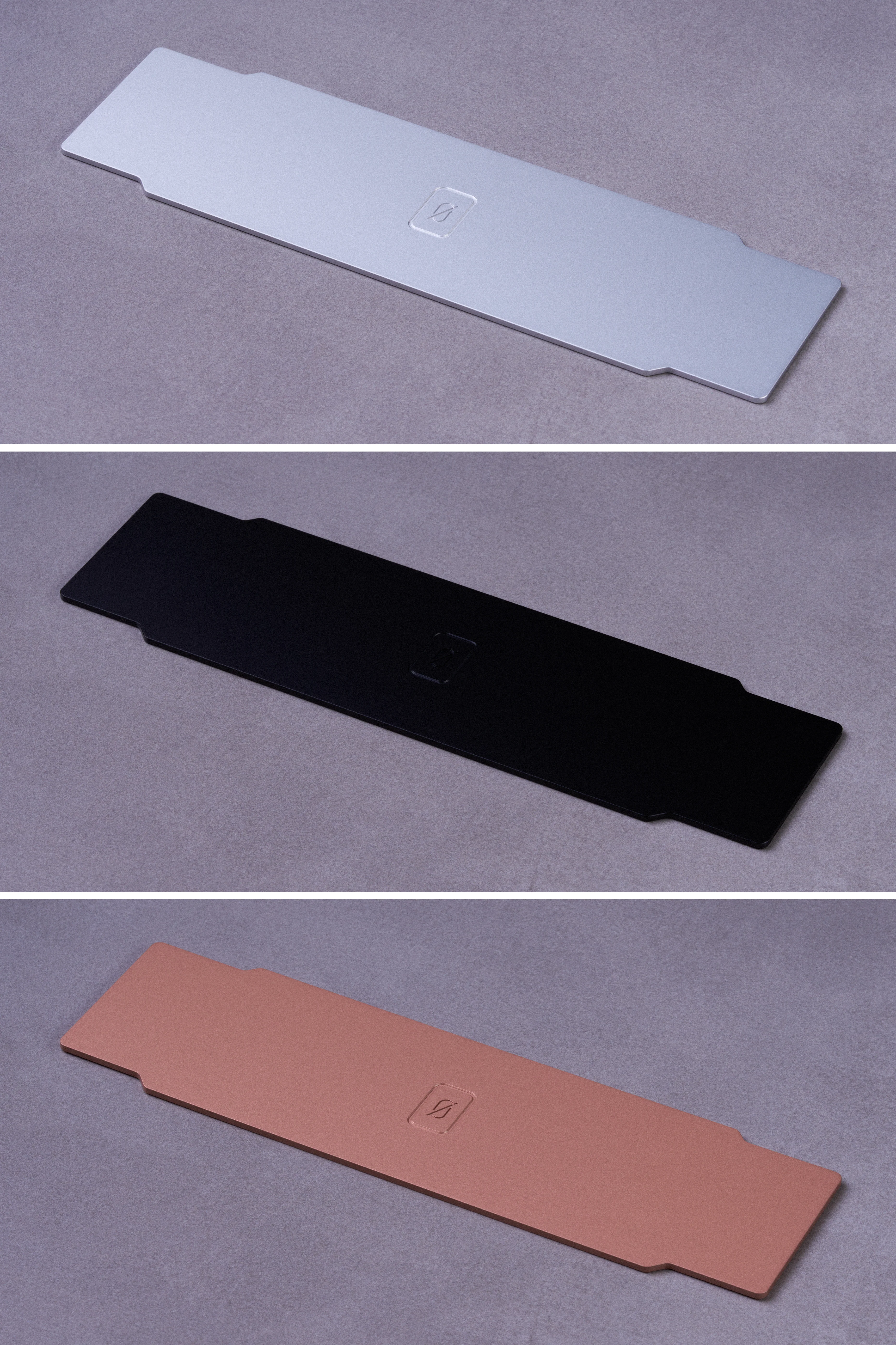

4. Chassis/bottom cover with aluminum 6063 or Copper

In the 4th iteration, the height of the overall board was optimized to determine the ideal typing height, as it was believed that typing height would be a crucial factor in achieving comfortable typing. The EKH height was reduced from 25.49mm in the previous iteration to 23.35mm, which constitutes a decrease of approximately 2.14mm.

Additionally, some gutter was added to optimize the travel distance for SMT components from the PCB, such as diodes, microcontrollers, and hotswap sockets, while maintaining the overall board volume.

Dimensions

Mounting System

Top mount
With 7 mounting point

O-ring
Friction fits o-ring mount with inner wall for isolated sound

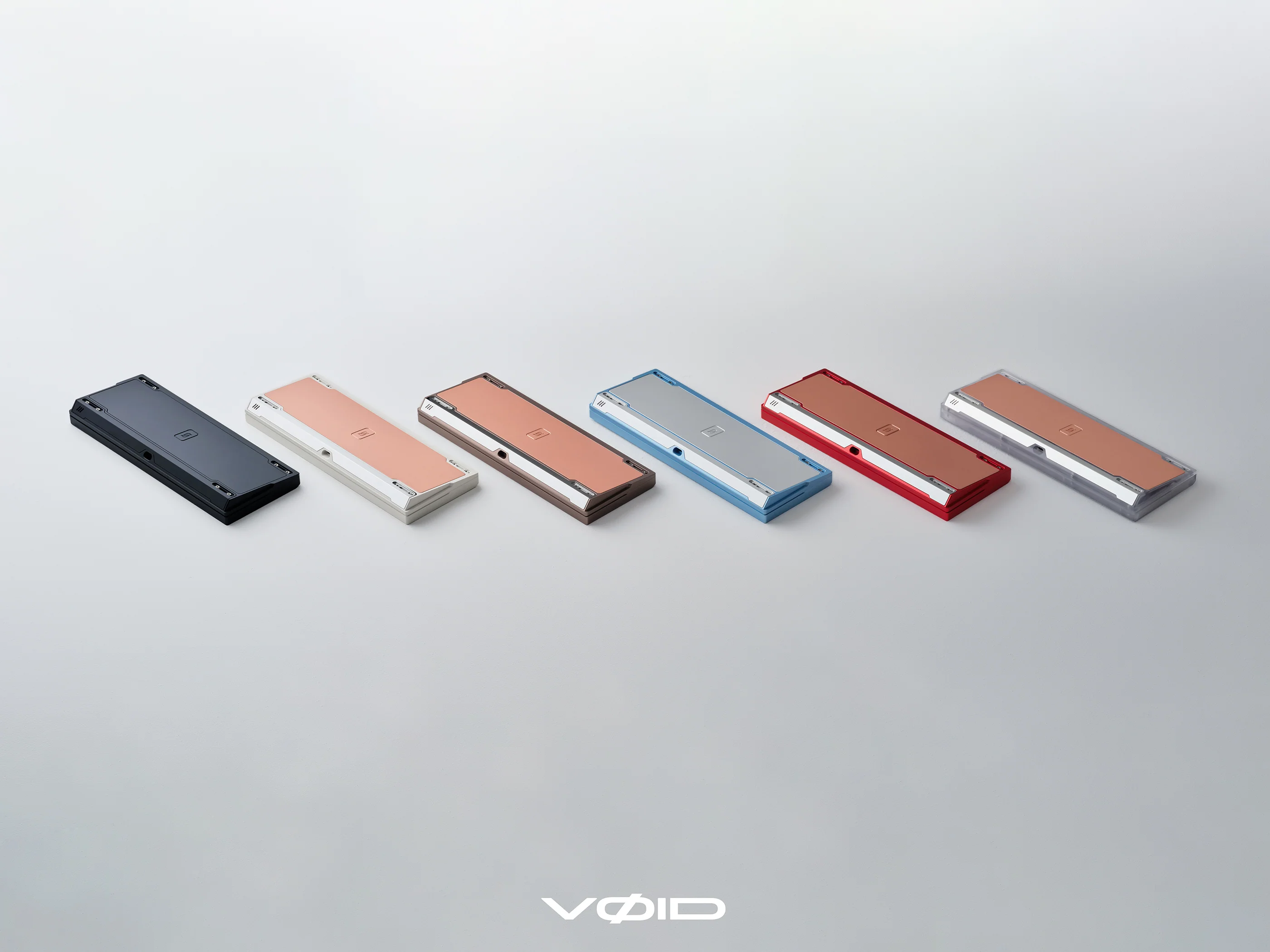

Color Options

Black

Blue

Brown

PC

White

Red

Layout

Solder layout provides more flexibility, including stepped Caps Lock, ISO, split Backspace, 7u + 6.25u spacebar, and the "cursed" layout. The cursed layout allows users who don't like arrow keys to experience the Void.

While hotswap will offer less flexibility compared to the solder version, it still supports stepped caps lock and split backspace compatibility.
