Boomerang Keyboard Kit

From the Designer Laminar Designs

I always loved the FLX Virgo but new I would not use the nav cluster if I got one, so I decided to make my own version of the layout.

* Limit of one Weight Bar per keyboard case order

Specifications:

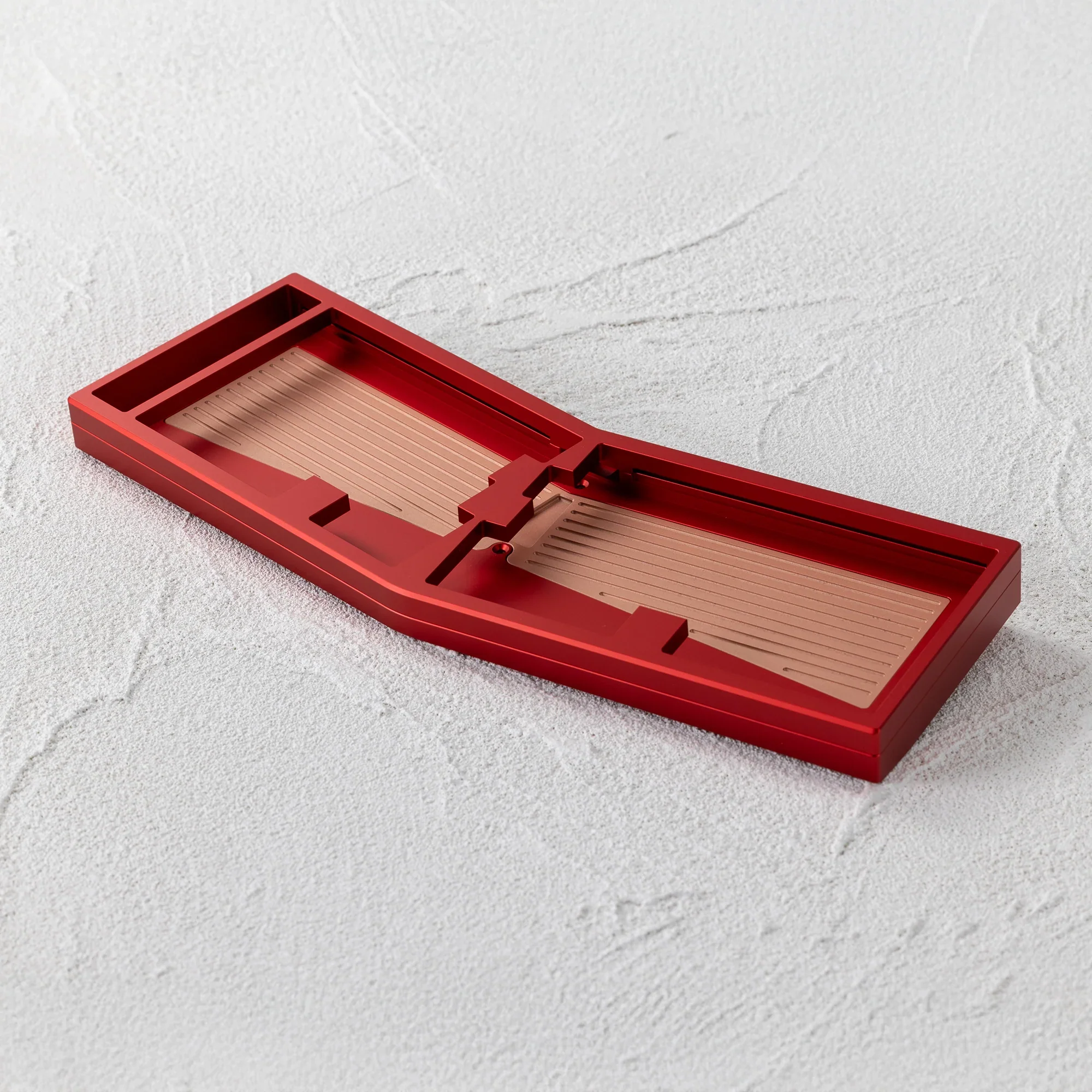

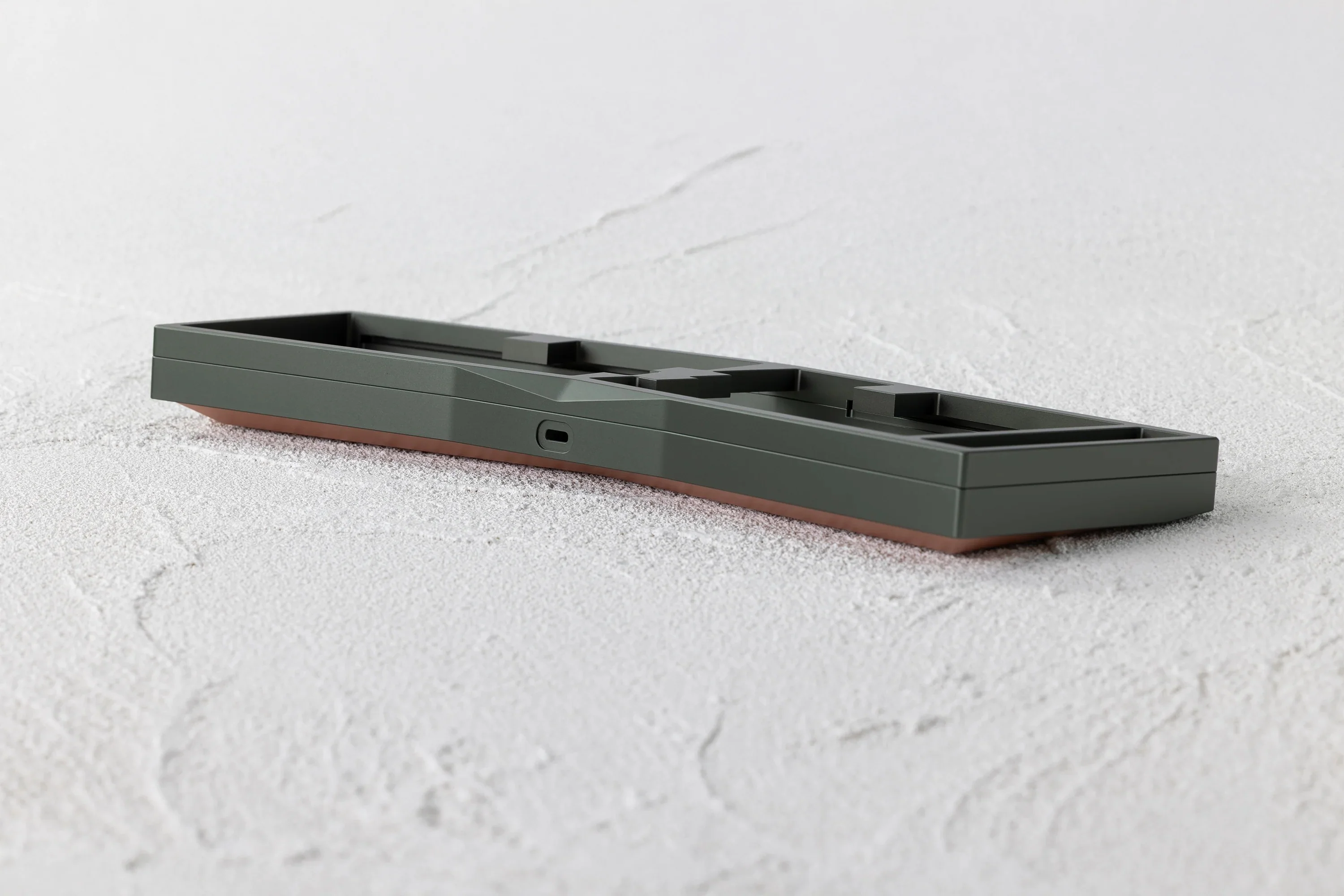

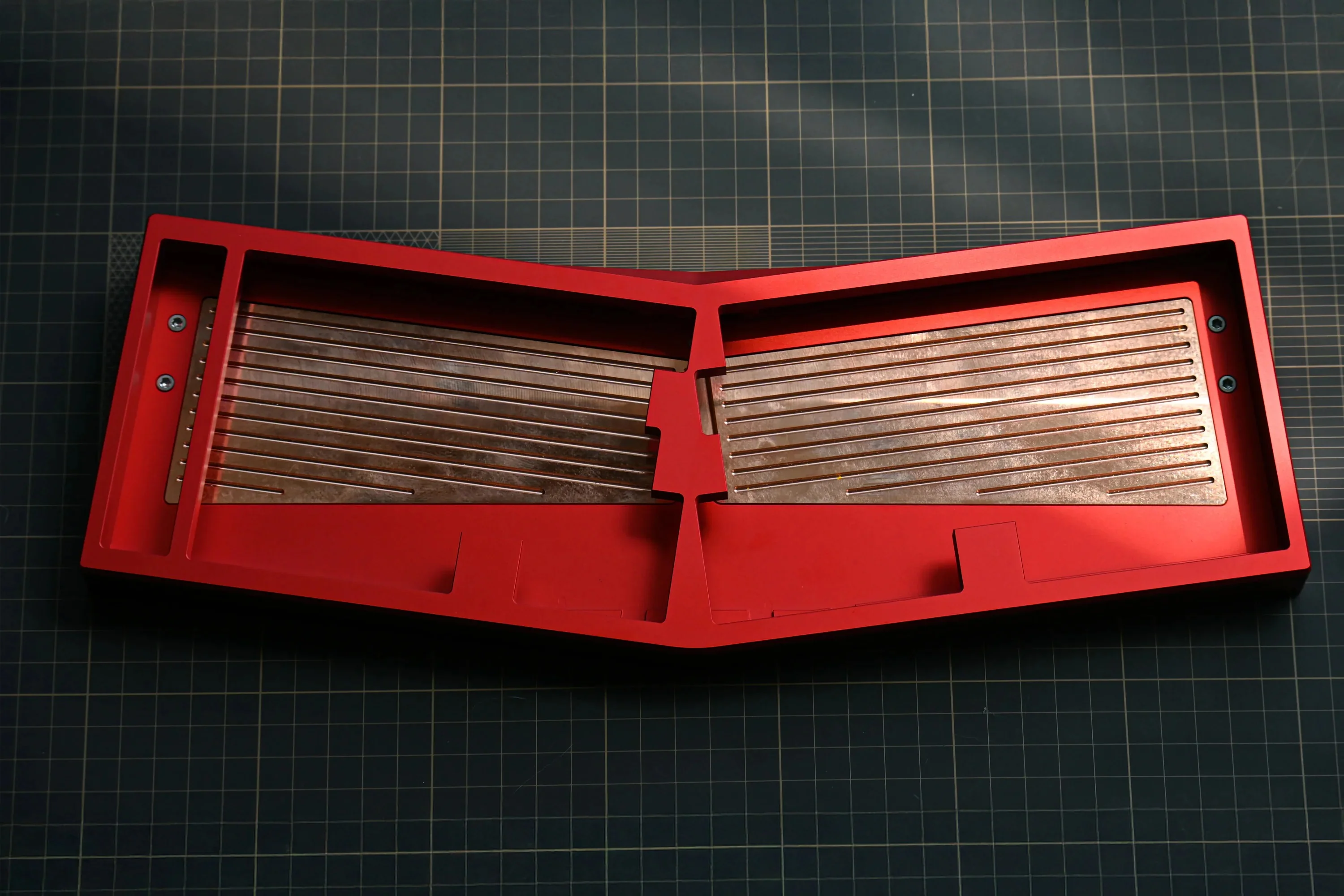

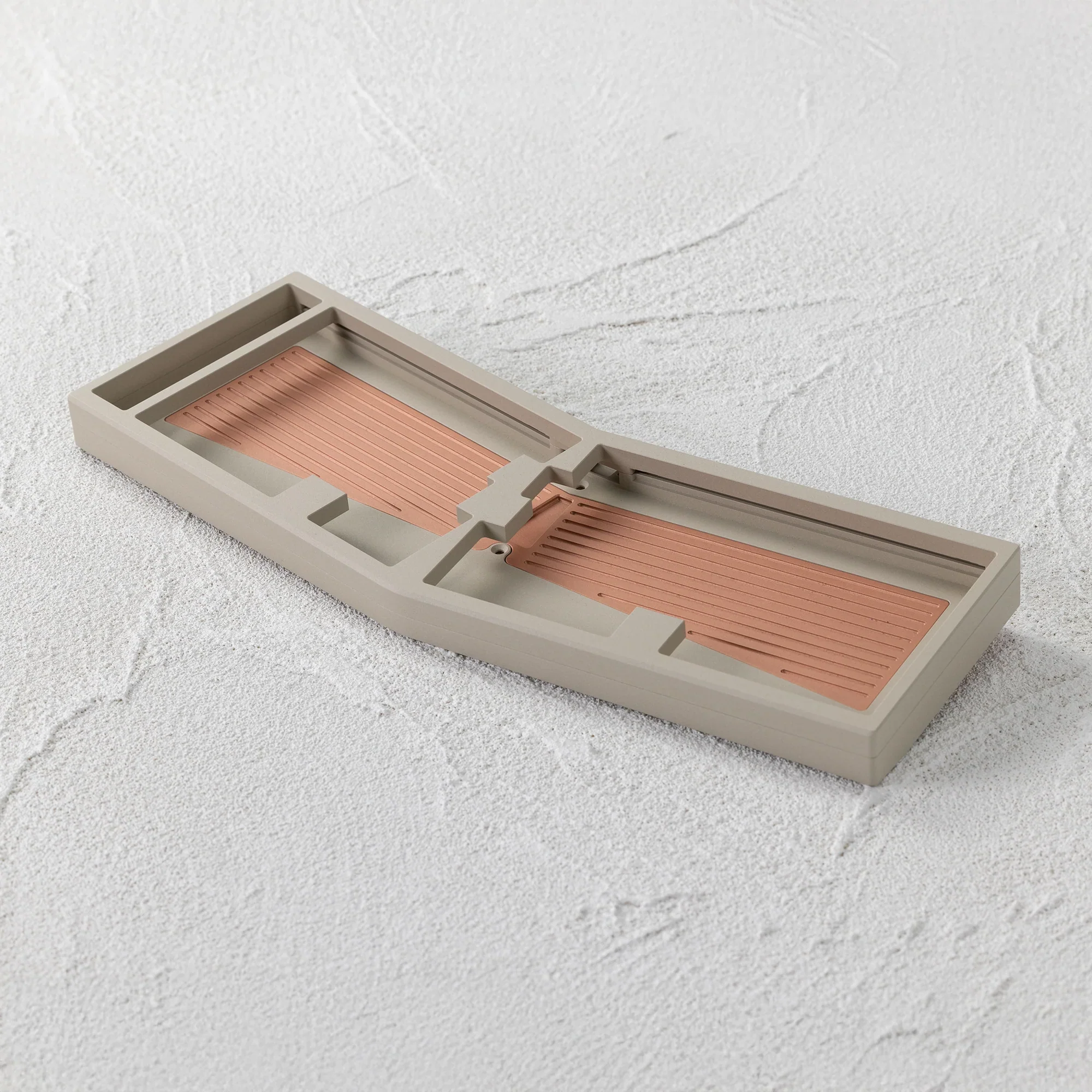

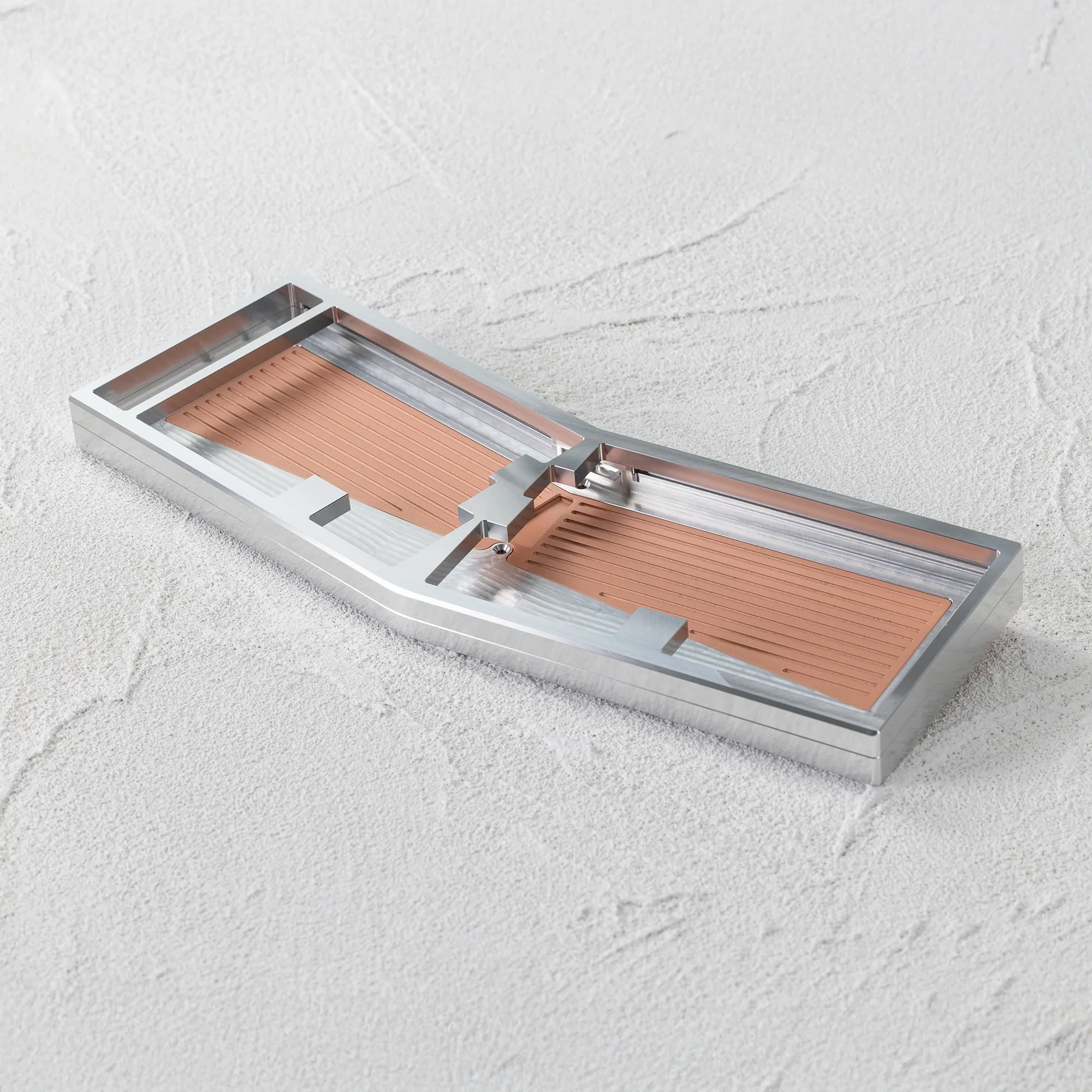

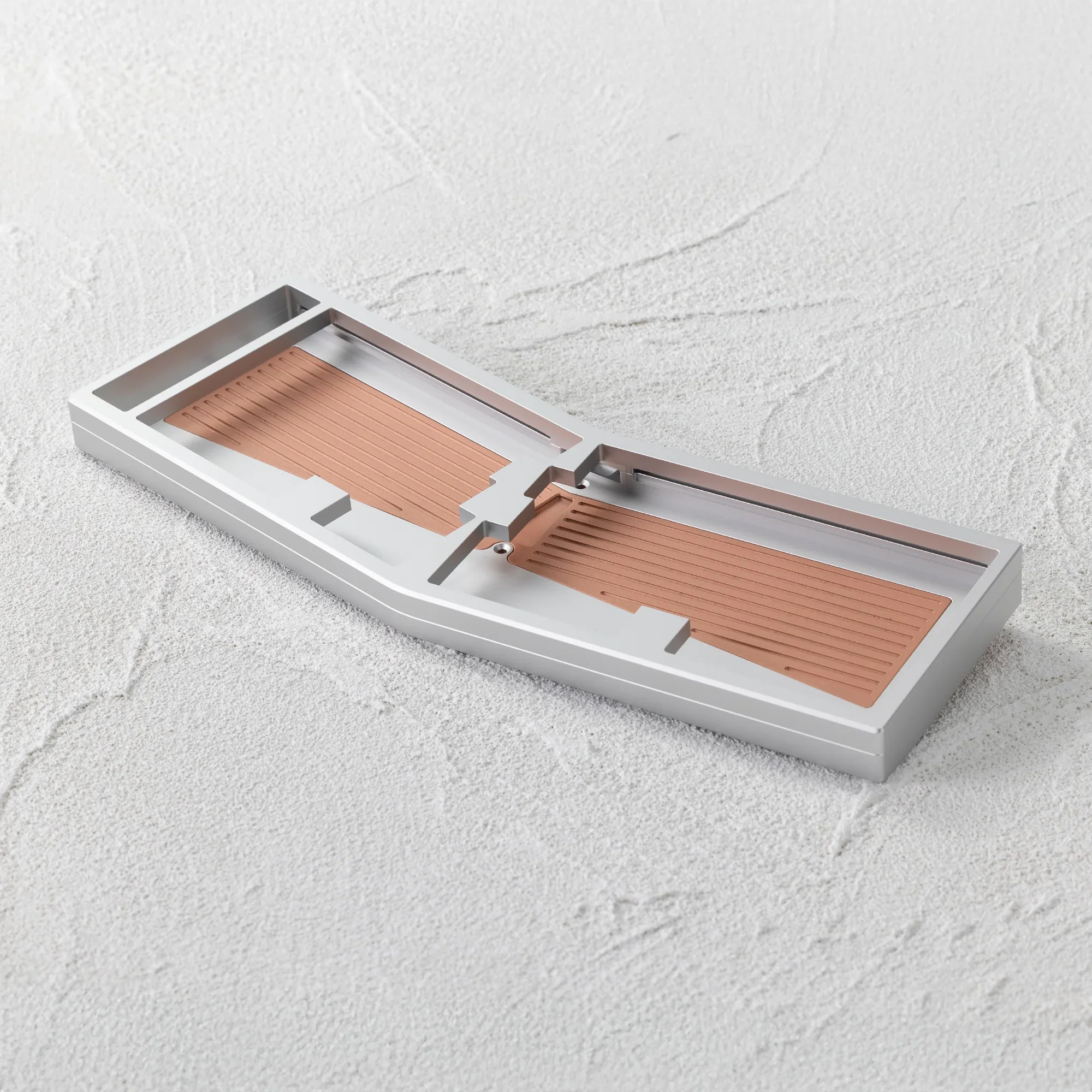

• Case Material: Aluminium

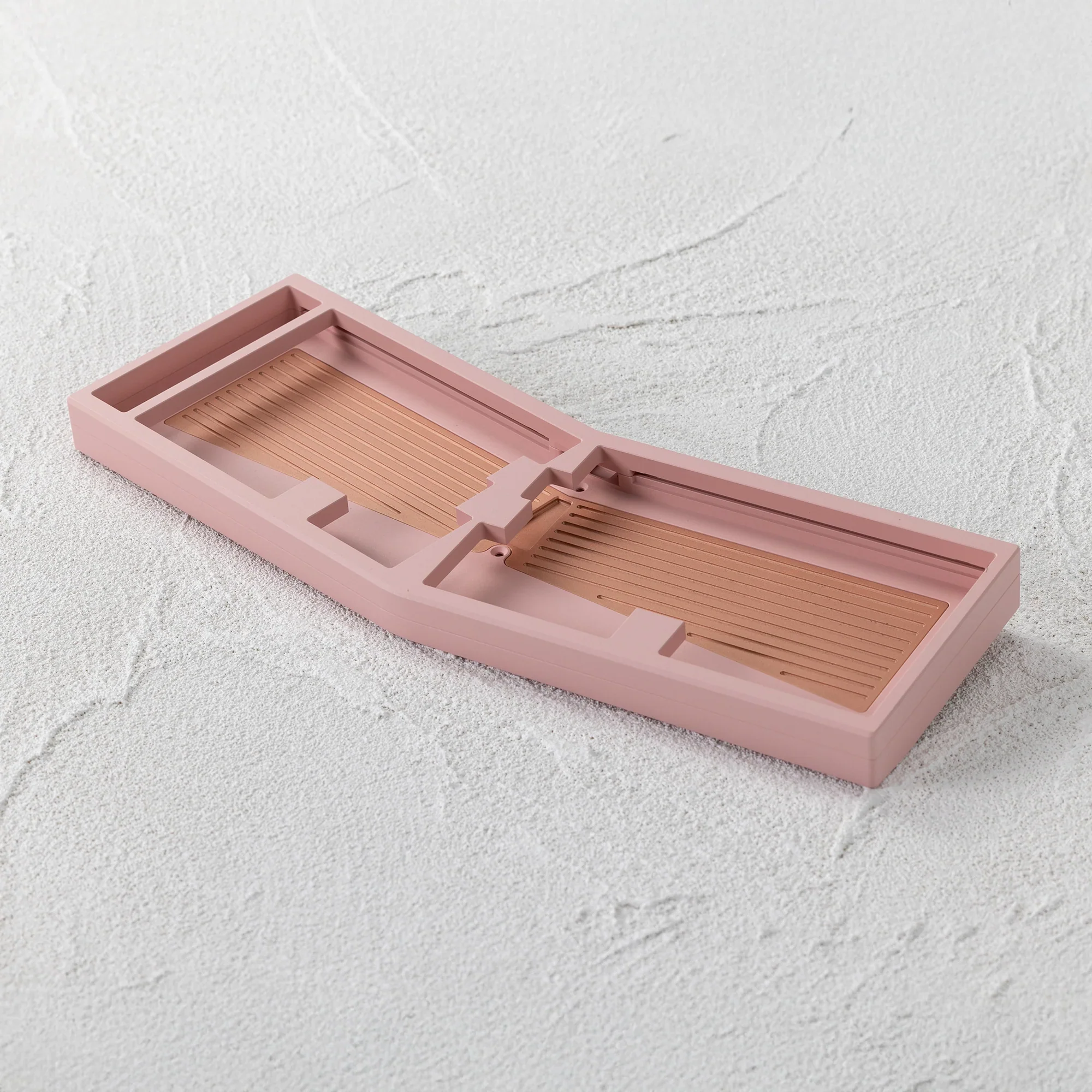

• Case Finishes/Processes: Anodized, E-Coating, RAW

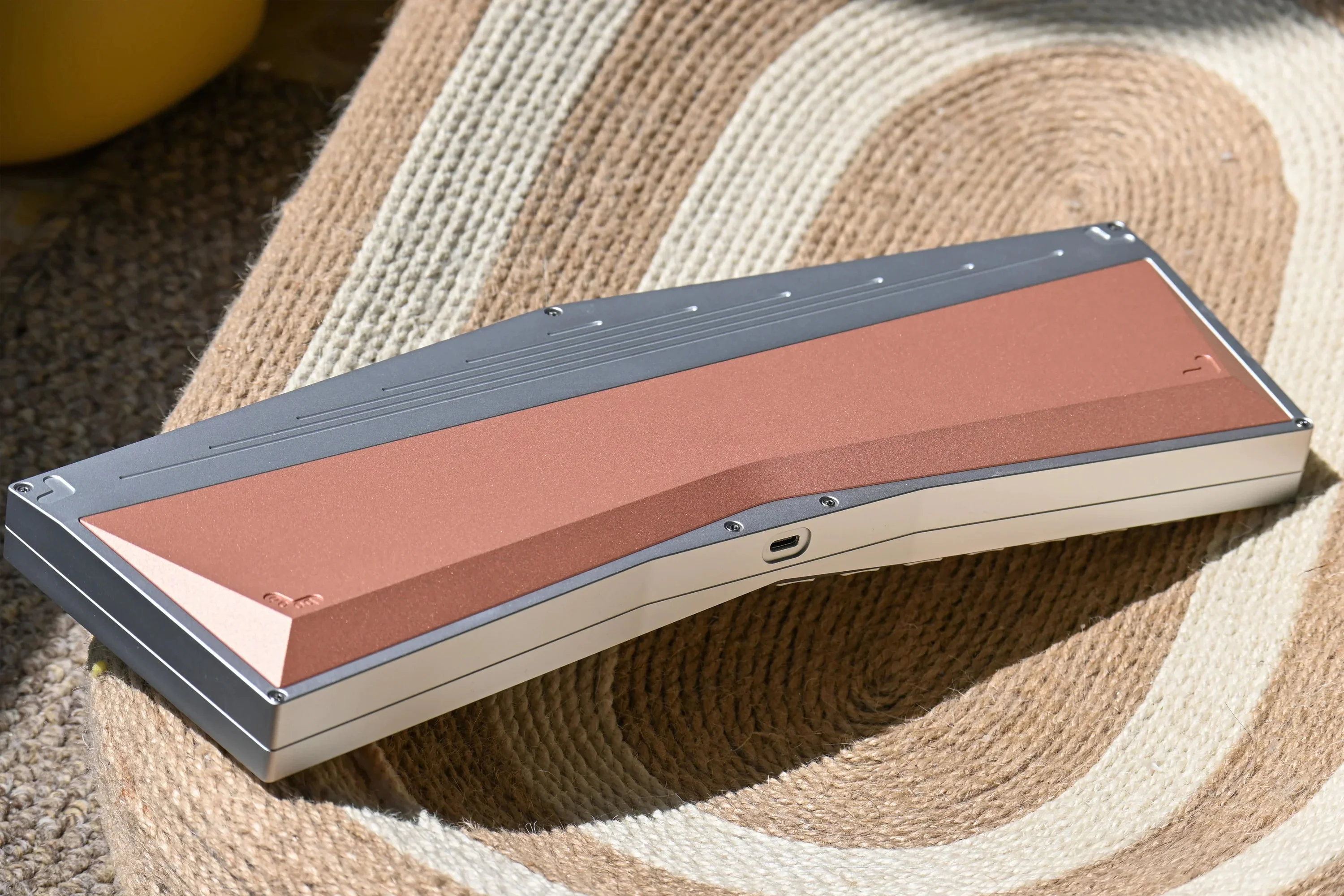

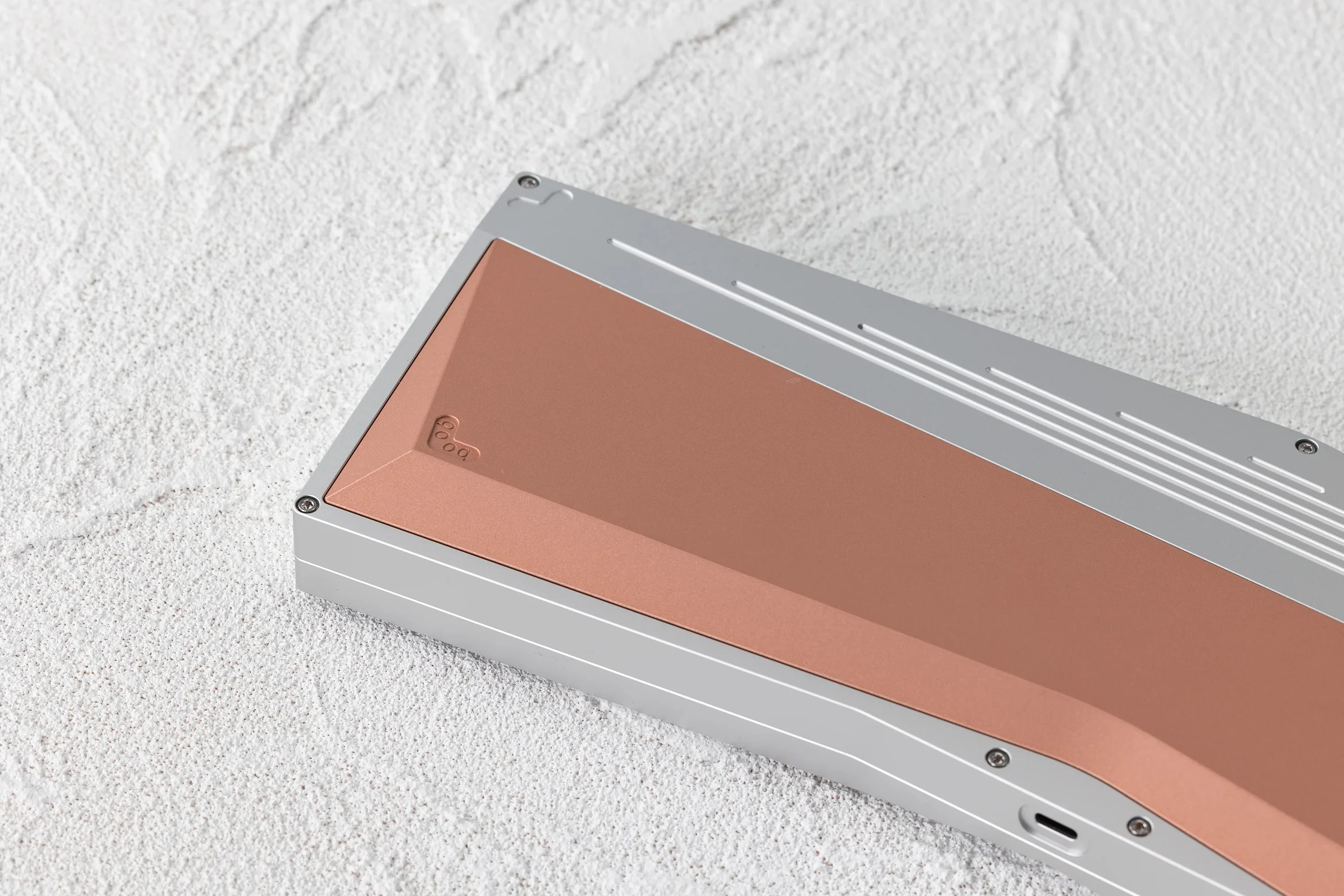

• Weight Material: Copper
• Weight Finishes/Processes: RAW version, Matte Anti-fingerprint, Heat-colored Patina / Vintage Finish
• PCB: Options: Soldered / Hotswap; Design: Separate daughterboard design (USB-C connection);Thickness: 1.6mm; Layout Support: ANSI & ISO compatible (Reminder: Our plate only supports ANSI layout);Software: VIA compatible;Plate Material: Polycarbonate.
• Mounting Structure: O-ring Mount (O-ring wraps around the plate perimeter)
• Weight: Copper Weight bar: Approx. 1.9 kg;Fully Assembled Keyboard: Approx. 2.9 kg
• Typing Angle: 6.5 degrees
• Front Height: Approx. 18.1mm (measured at the lowest point)
• O-ring Dimensions: 60mm Outer Diameter * 2.4mm Cross-section Thickness
• Designer: Laminar Designs

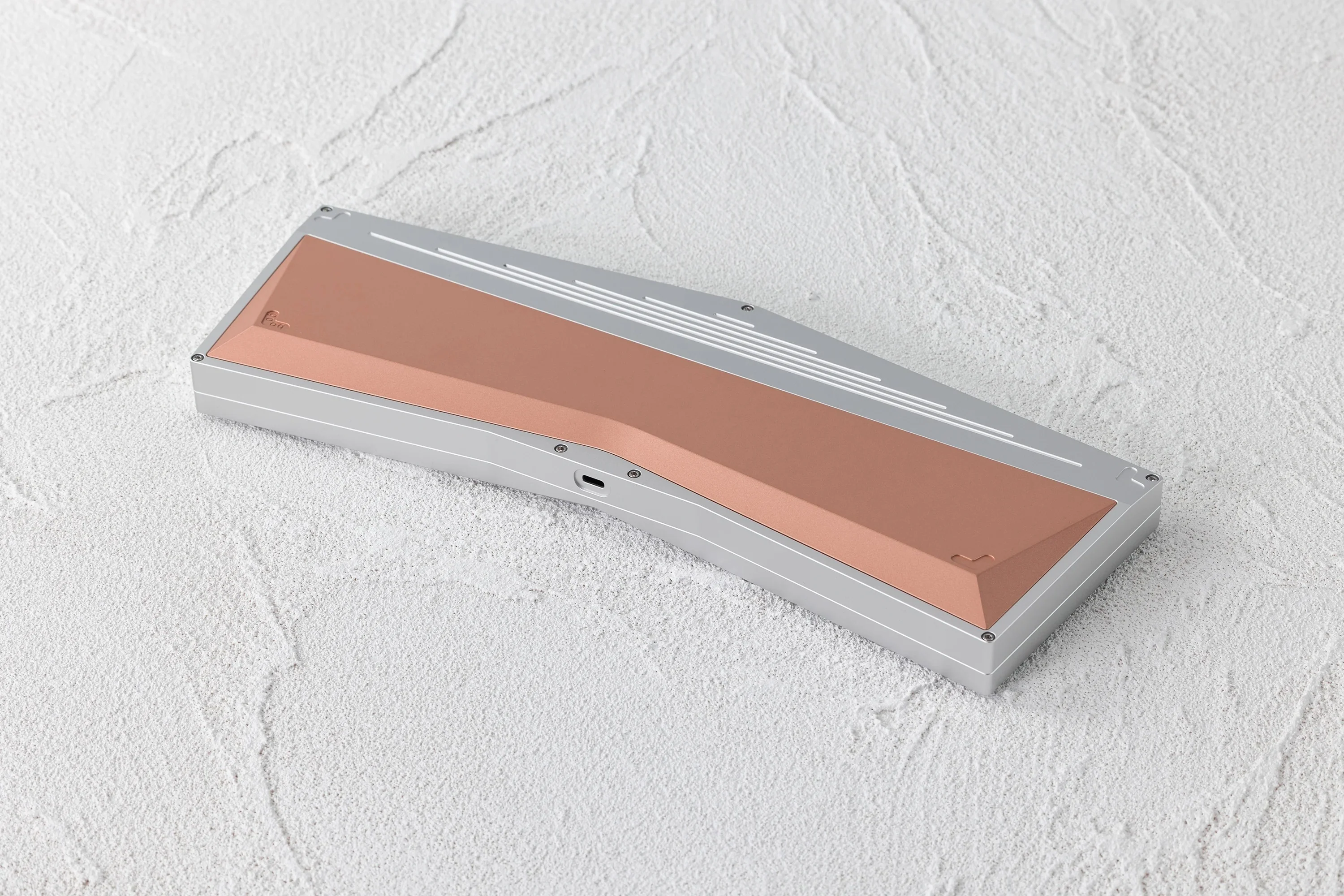

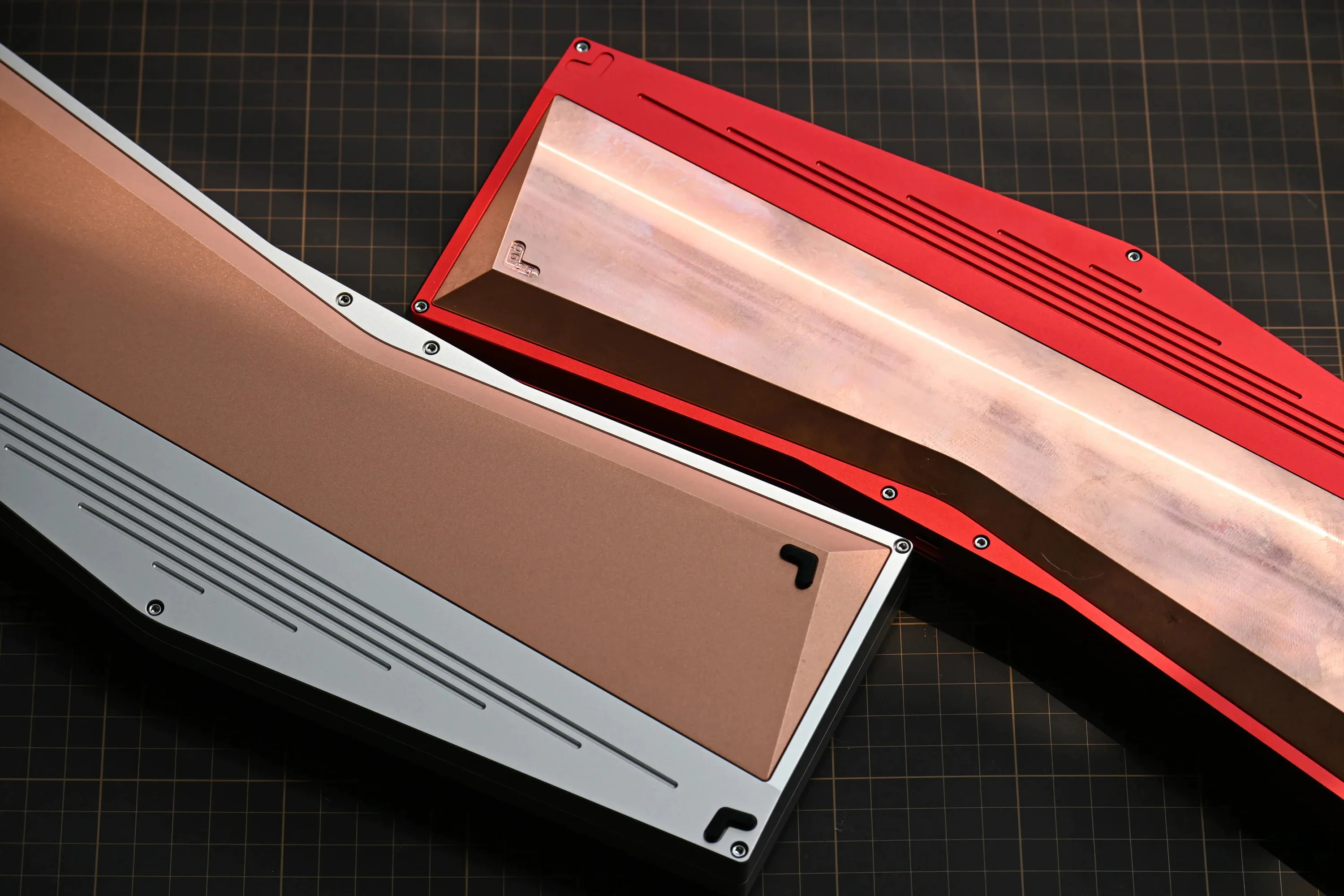

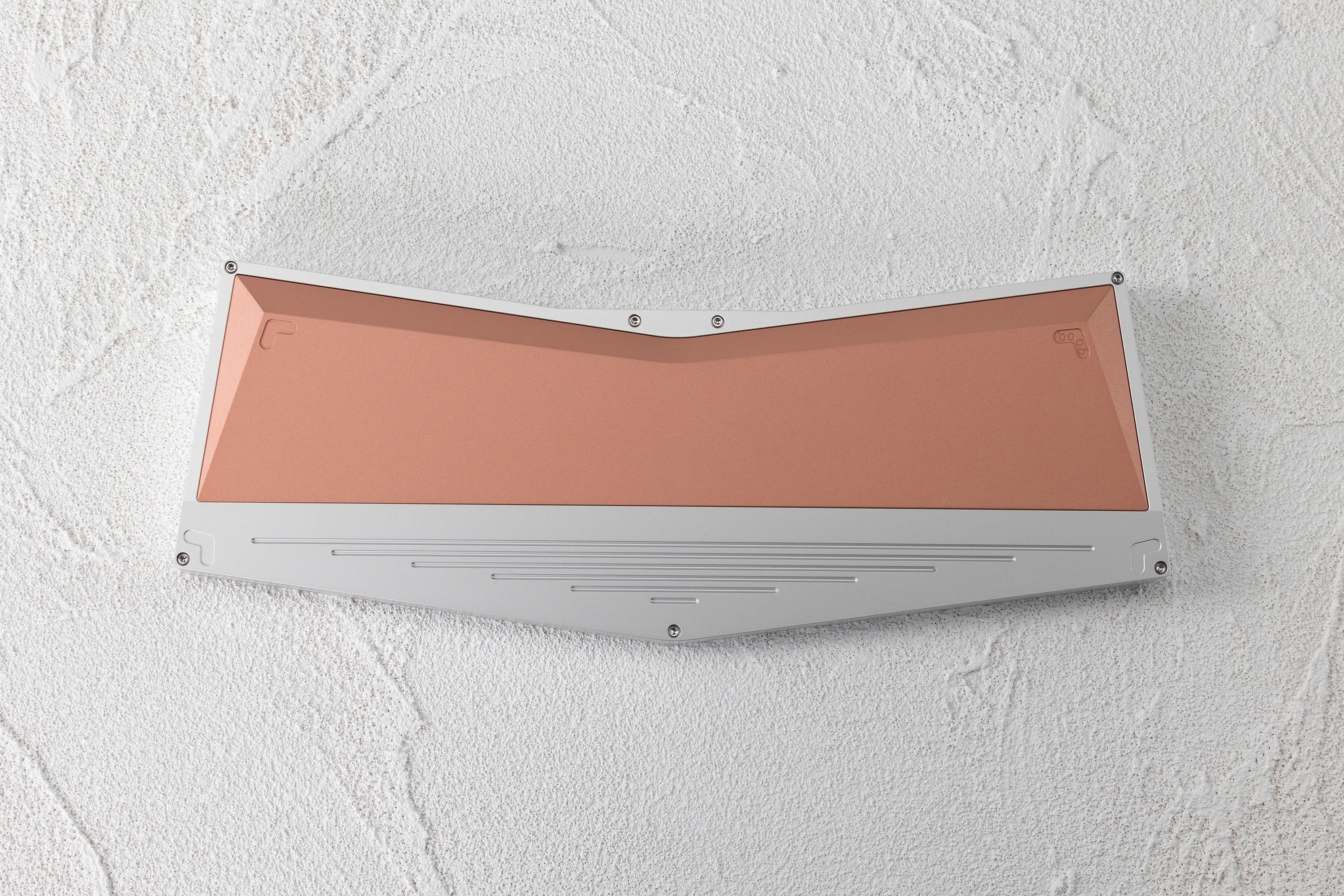

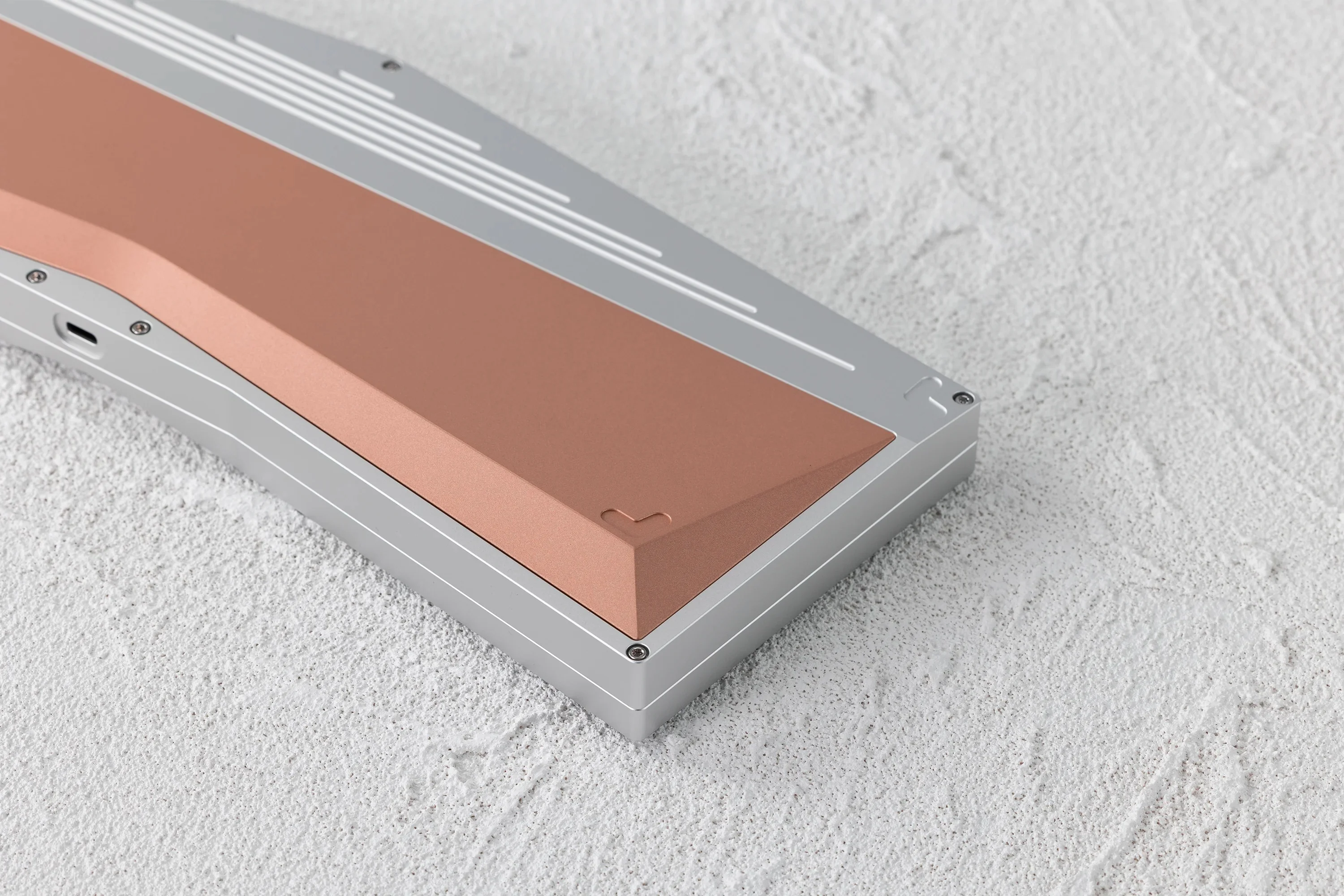

Weights:

• Top: Raw
• Middle: Patina Grey
• Bottom: Sandblasted Copper

Layout:



Dimensions:



Kit Includes:

• Keyboard case x1
• PCB x1
• PC Plate x1
• Weight bar x1
• Oring gasket x1
• Bottom-out Prevention Foam x1
• Rubber feet x1
• Carrying case x1
• Screwdriver with T6 bit x1 T8 bit x1



Vendors:

• KR: Geonworks
• CN/INT: KBDFans
• US: ClickClack
• EU: DeltaKeyCo
• CA: Unikeys
• UK: Prototypist
• South America: LatamKeys
• SEA: Qwertyqop
